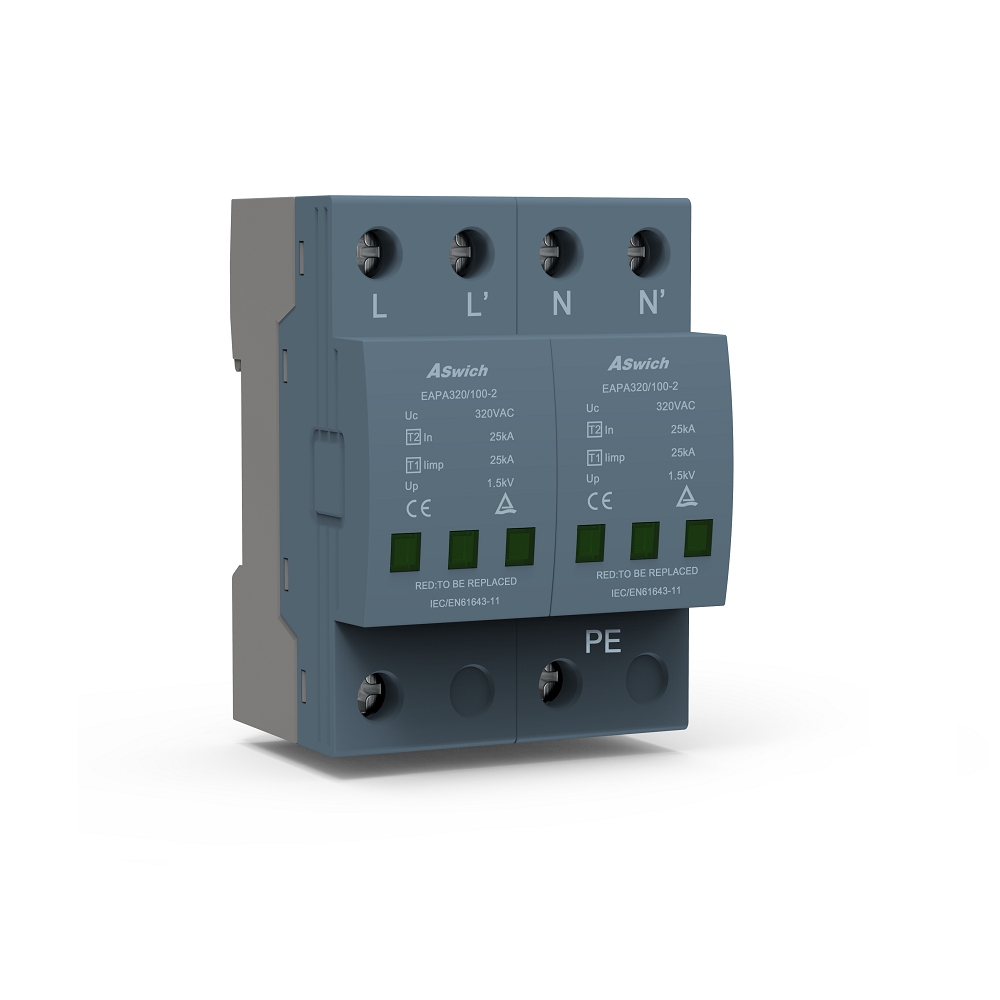

EAP T1+T1, B+C, Class I+II,lmax 100kA AC Surge Protection Device

AC Surge Protection Device SPD Type 1 2, T1 T1, B C, I II, Iimp 10kA,lmax 100kA is designed to be the best possible solution for protecting service entrances at industrial sites, particularly those with existing lightning protection systems or mesh cage applications. This sort of surge protection can protect all electrical installations from lightning strikes by discharging the current generated by a lightning surge and preventing its spread to the equipment. The current waveform of the Type 1 2/Class B C, I II SPD is 10/350 μs.

Product Benefits

  • AC Surge Protection Device SPDs T1+T2 Iimp 10 kA

  • Versions with 1+0, 1+1, 2+0, 2+1 , 3+0, 3+1 and 4+0 connection

  • SPD according to EN 61643-11 / IEC 61643-11

  • Plug-in module design, easy replacement.

  • Visual Indication: Green=OK, Red=Replace.

  • Remote alarm contact to make status monitoring easy.

  • Quick thermal response for self-protection.

  • Voltage protection level (Up): <2000V.

  • T1+T2, Class B+C, Class I+II, Iimp(10/350μs): 25kA, In(8/20μs): 25kA, Imax(8/20μs): 100kA.

  • Maximum continuous operational voltage Uc from 275V up to 440VAC.
