12V Car RV Marine Boat Part Dual Battery Switch Disconnect Isolation Switch 250A 600A

Waterproof 12v Car Boat Battery Switch Battery Isolator disconnected Cut Off Switch For Marine Truck Car Vehicle Yacht DC 8-60V

Product Benefits

  • Two-speed car yacht off switch, high current total power switch, on-off leakage switch

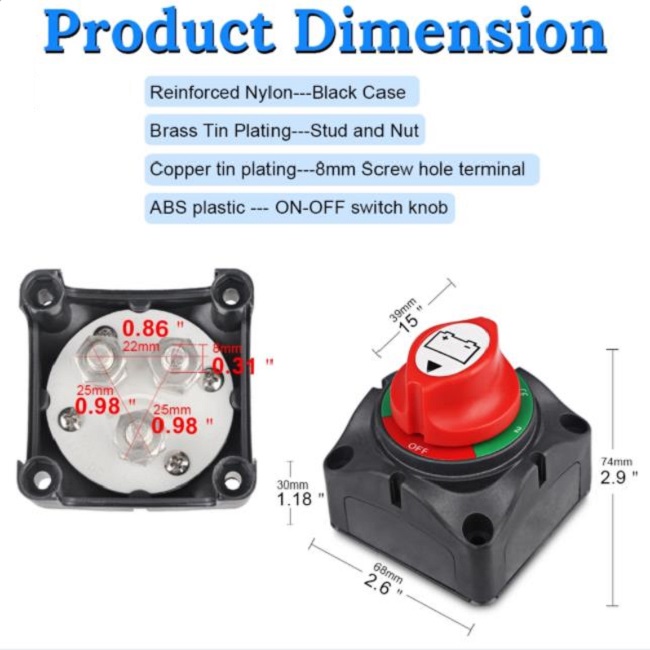

  • Size: 2.68" x 2.68" x 3.07"

  • Terminal studs: 10mm diameter

  • ABS plastic housing, durable made for safety use

  • Rear cover insulates terminals against any short of circuits

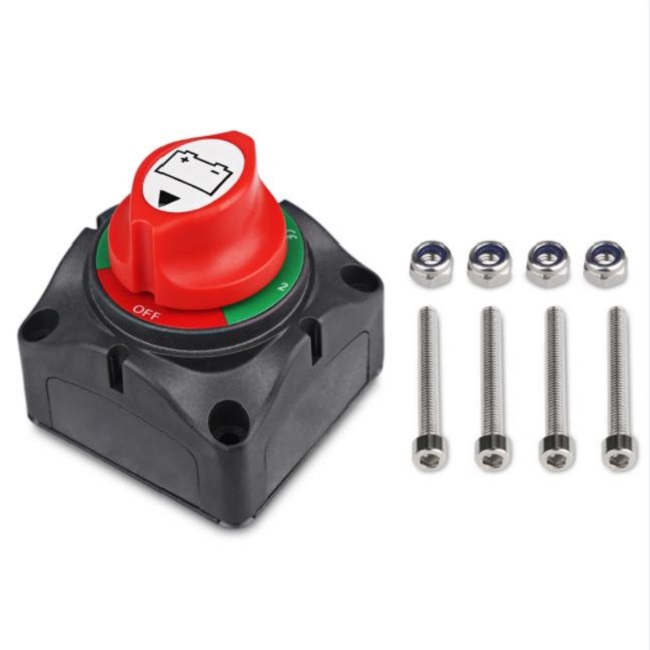

  • Copper terminal studs with nuts and washers

  • 275A continuous at DC 12V, 350A Intermittent at DC 12V, 1250A momentary at DC 12V

  • Used for 8V up to 60V DC systems to isolate and secure the electrical system

  • Can be controlled by switching to a 45° counterclockwise position

  • Eliminate any power draw from the battery when vehicle or boat is not in use

  • Disconnects the battery safely

  • Easy to install - Comprehensive wiring diagram and installation

  • Provides a simple and economical way to separate batteries

  • Break-before-make contact design allows switching between battery packs without interruption

  • Ignition protection,Safely installed on petrol-powered boats or vehicles

  • Widely Application in Ship Boat Small yacht RV Camper truck Car Vehicle Automobiles Campers ATV UTV battery banks and other 0-60V devices

  • Note: High current may be dangerous, please use it carefully
