What is the function of the surge protection device of the photovoltaic system?

Addtime:2022,03,14

Surge Protective Devices (SPDs) provide protection against electrical surges and spikes, including those caused directly and indirectly by lightning. They can be utilized as complete devices or as components within electrical equipment.

Photovoltaic (PV) system converts solar energy into direct current electricity. PV system ranges from small, rooftop-mounted or building-integrated systems with capacities from a few to several tens of kilowatts, to large utility-scale power stations of hundreds of megawatts. The potential impact of lightning events increases with PV system size. At locations with frequent lightning, unprotected PV systems will suffer repeated and significant damages. This results in substantial repair and replacement costs, system downtime and loss of revenue. Properly installed surge protective devices (SPDs) will minimize the potential impact of lightning events.


Sensitive electrical equipments of PV system like AC/DC Inverter, monitoring devices and PV array must be protected by surge protective devices (SPD).

Surge Protection for PV System

PV systems are exposed to both direct and indirect lightning events. The impact of lightning events increases with PV system size. Poorly protected PV systems will suffer repeated and significant damages and thus result in substantial repair and replacement costs, system downtime and loss of revenue. Properly installed surge protective devices (SPDs) will minimize the potential impact of lightning events.

Sensitive electrical equipment of PV system like AC/DC inverter, monitoring devices and PV array must be protected by surge protective devices (SPD).

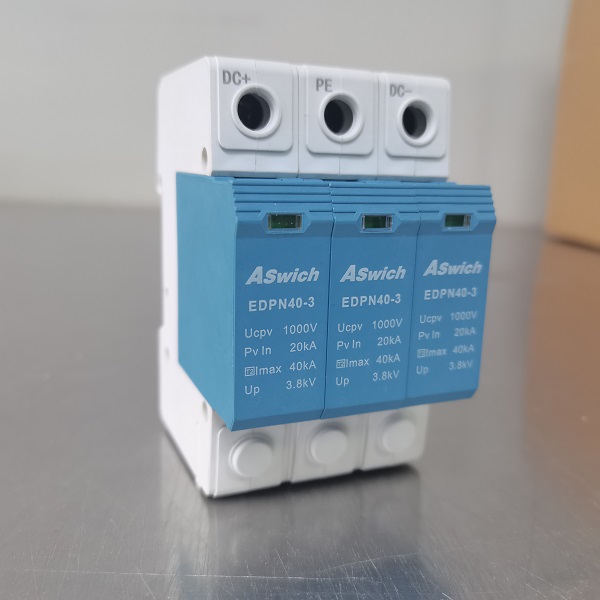

Application

Suitable for circuits below 1500VDC
cabinet/combiner box/photovoltaic system
